Erosion

Electrical discharge machining is a machining consisting in changing the shape, volume, roughness and qualities of the plane of an electrically conductive ingot under the influence of electric discharges generated between the ingot and the electrode-tool.

Equipment for EDM in our tool production:

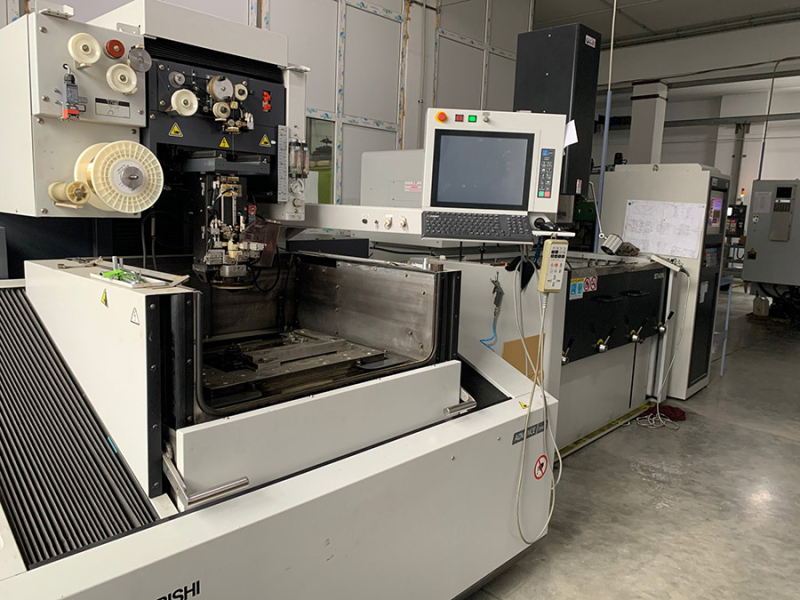

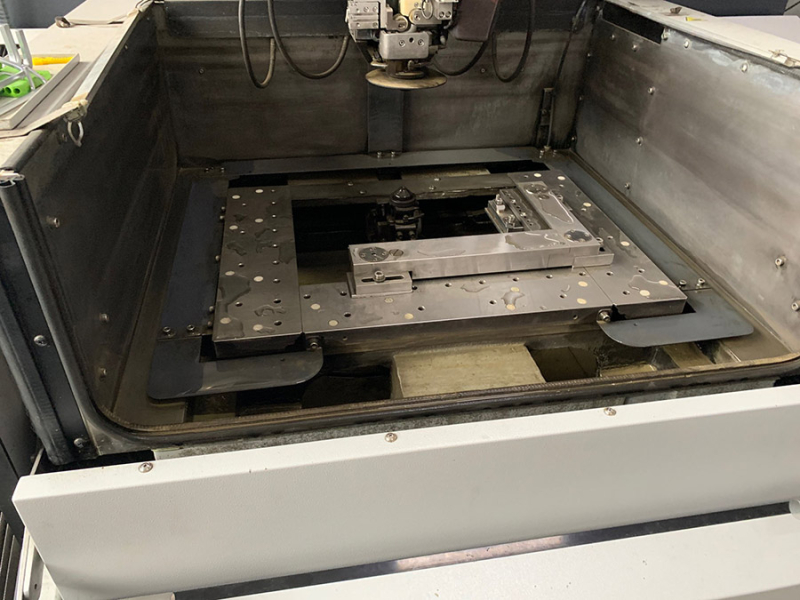

Wire-cut machine Mitsubishi MV1200
Movements along the axes (X / Y / Z) 400x300x220 mm
Wire slope / part height 15 ° / 200 mm, 30 ° / 87 mm
Minimum roughness 0.3

Electric discharge drill River 3
Moving the table (X, Y axis) 300 x 200 mm
Max. workpiece height 180 mm
Drilling from 0.6mm to 4mm

OCEAN Wire EDM Machine
Maximum work table weight 500
Working travel 1500X940X520
